The following guide outlines the steps necessary to install & configure BoxPN using OpenVPN with Stunnel on your Windows 10 computer:



1.  Download Stunnel client from this link.

2.  Install Stunnel client

  1. Right-click on downloaded file and choose “Run as Administrator”
  2. Click“I Agree”

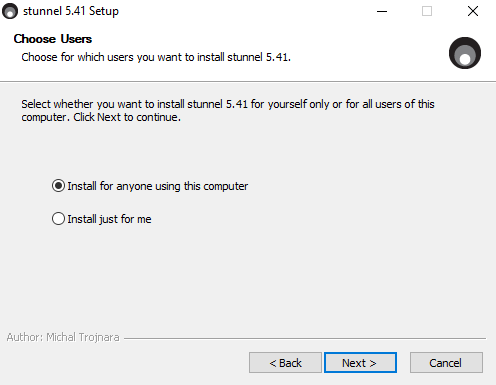

  3. Choose “Install for anyone using this computer”

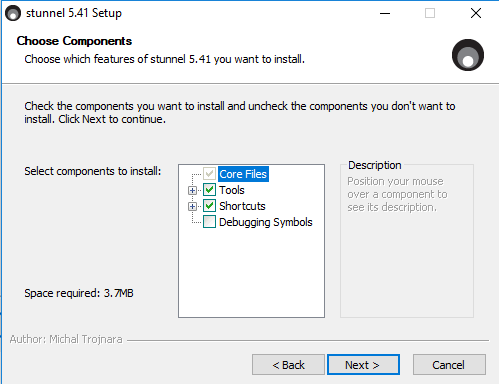

  4. Don’t changing anything here

  5. Choose directory for install Stunnel

  6. In the end of install, it will open new console window. You can input any information to these fields. It doesn’t matter and don’t have any affect to your connection.

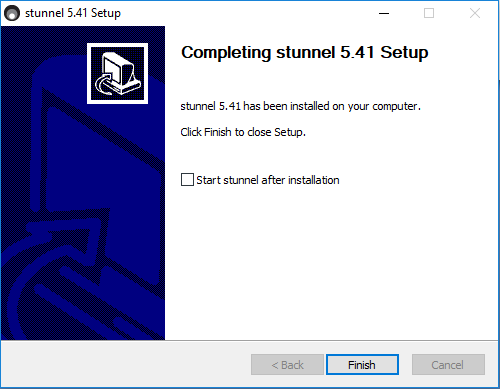

  7. Don’t mark “Start stunnel after installation, just click “Finish”


3.  Download OpenVPN GUI from this link. For Windows(Vista and later) you can download openvpn-install-2.4.3-I602.exe

  1. Right-click on downloaded file and choose “Run as Administrator”

  2. Click “Next”

  3. Click “I Agree”

  4. Don’t changing anything here

  5. Choose folder for install OpenVPN GUI



  6. It can ask for agree to install TAP-adapter. You need to confirm it.

4.  Install configuration

  1. Download Stunnel configurations from this link
  2. Right-click on downloaded archive and extract it to stunnel folder
  3. IMPORTANT NOTE: Please make sure that all files were extracted not in  C:/Program Files(x86)/stunnel/  but in separate folder: ( in this example C:/Program Files(x86)/stunnel/boxpn-stunnel-configs/ )




  4. Copy file localhost to OpenVPN GUI config folder (in this example C:/Program Files/OpenVPN/config)

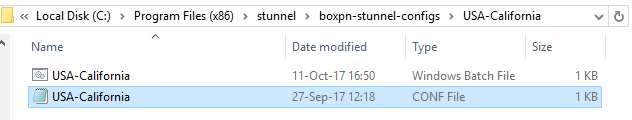

  5. Copy stunnel config (in this example USA-California CONF file) to Stunnel config folder

5.  Run Stunnel

  1. Right-click on Stunnel batch file and choose “Open”
  2. Be sure that Stunnel running (icon will be green)

6.  Connect to VPN

  1. Right-click on OpenVPN GUI and click “Connect”
  2. Input your Username and Password

  3. Wait until connection successfully established. You will see this notify, when connection established.

    Please note that IP address you see is not public, you can check your public ip via service like ipinfo.io

7.   Now you are connected to VPN and your activity in Internet hide from anyone. Enjoy.

8.   IMPORTANT NOTE: If you connected and then want to change server, you need to DISCONNECT from OpenVPN (right-click on icon and choose Disconnect), then run another Stunnel .batch file (5.1 step) and connect to OpenVPN again.


All of your online activities are now 100% secure and anonymous while connected to BoxPN.



If you have any questions, or experience any issues while installing & setting up


your Windows device to connect to the BoxPN VPN servers; please contact our Support Team anytime.
